Focaccia Board: a Multipurpose Breakout for the FT232H

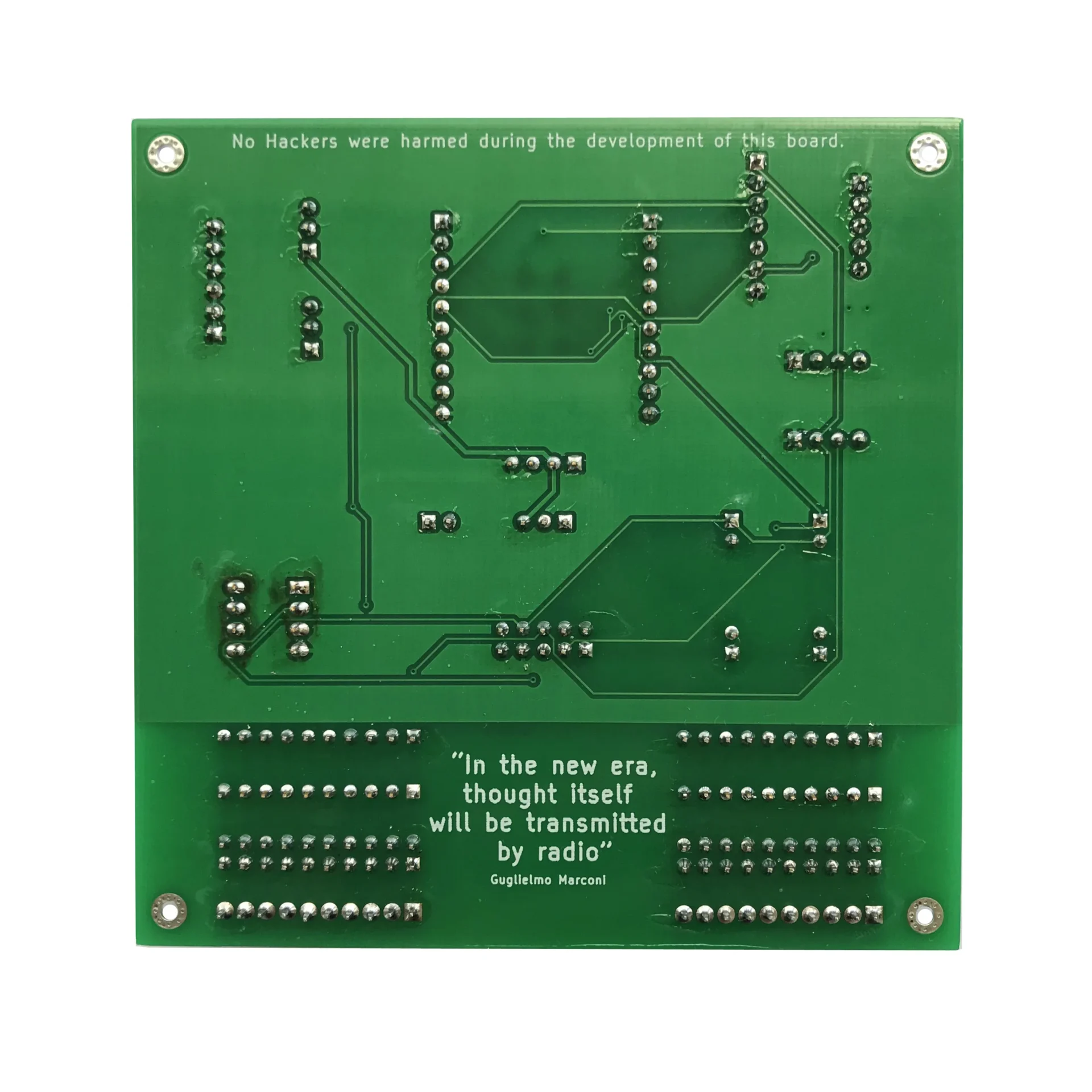

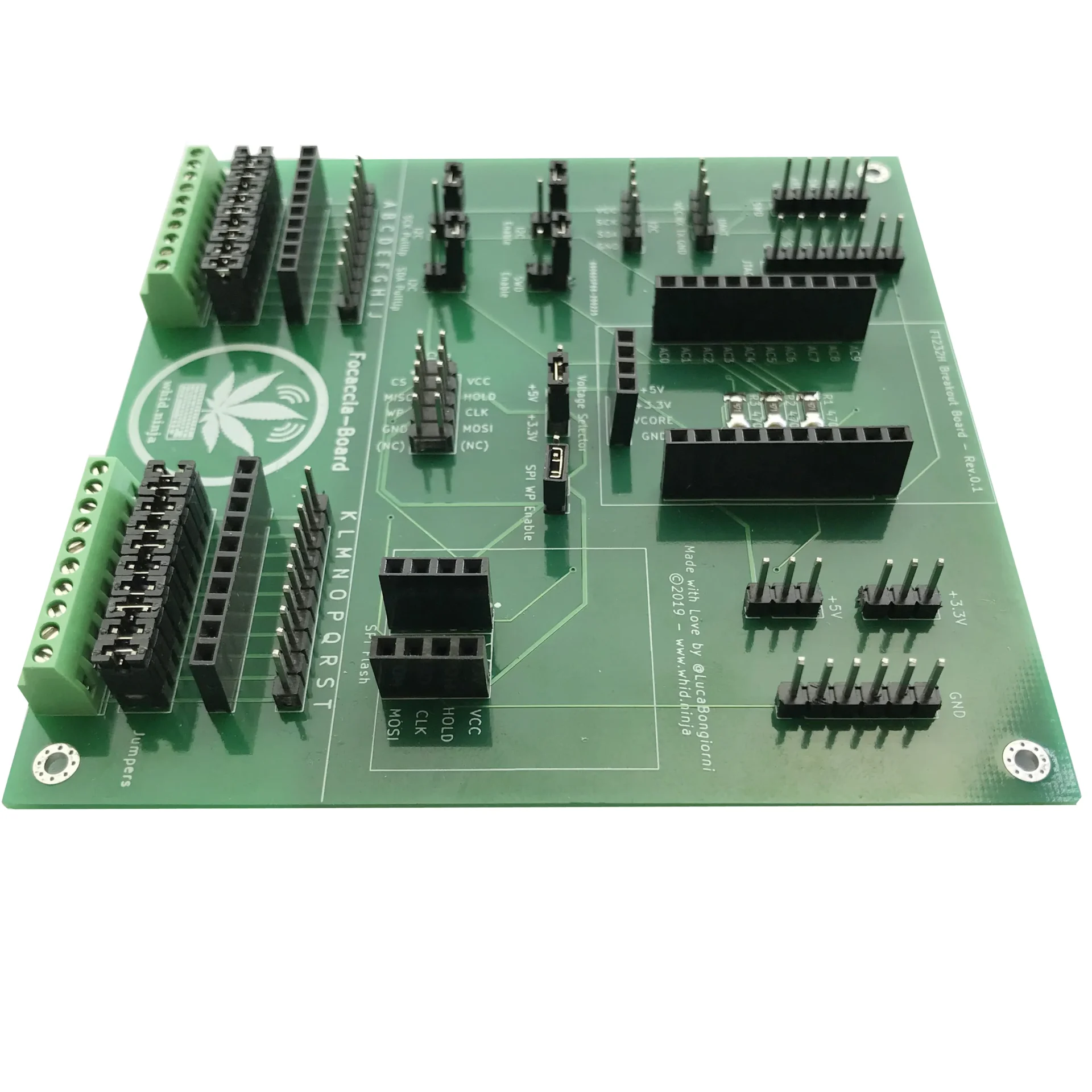

Focaccia-Board: a Multipurpose Breakout for the FT232H to easily hack (I)IoT devices!Read more about it here:https://medium.com/@LucaBongiorni/hacking-iot-devices-with-focaccia-board-8c4e009ed488https://twitter.com/LucaBongiorni/status/1261418366721576964Further resource: https://github.com/whid-injector/Focaccia-BoardTips:This breakout is designed for the FT232H CJMCU board (https://www.aliexpress.com/item/32814913865.html)Pull-up Resistors are 470 Ohm.Screws to hold the PCB to the 3D-printed case are 2x6mm.You can select the working Voltage by moving the Jumper on the PCB (i.e. Voltage Selector)What is Included:– Focaccia-Board PCB pre-assembled (with jumpers)What is NOT Included:– Extension USB cable (Female to Male)– FT232H CJMCU– Sop-8 Clip– Sop-16 Socket & ClipUARTCommand to run the UART console feature: Configure minicom/putty/whatever-terminal-you-are-used-to (e.g. screen /dev/ttyUSB0 38400)JTAGCommand to run the JTAG debugging feature:sudo openocd -f ft232h_jtag-swd.config -f target_device.cfgSWDCommand to run the SWD debugging feature (remember to uncomment last line in ft232h_jtag-swd.config):sudo openocd -f ft232h_jtag-swd.config -f target_device.cfgSPI DumpingCommand to run the SPI dumping feature:flashrom -p ft2232_spi:type=232H -r spi_dump.binIn case you need also to write a SPI flash… please do enable the WRITE PROTECT (WP) Jumper on the PCB (i.e. SPI WP Enable).I2C DumpingMultipurpose Pin Headers/SocketsOn the lower part of Focaccia-Board’s PCB there are some pin headers/sockets that are not connected with the FT232H. They are there just in case you need to mess-up with many flying-wires and you want to keep all connections clean and in order like with an usual breadboard, but with screwdown terminal blocks & co.
